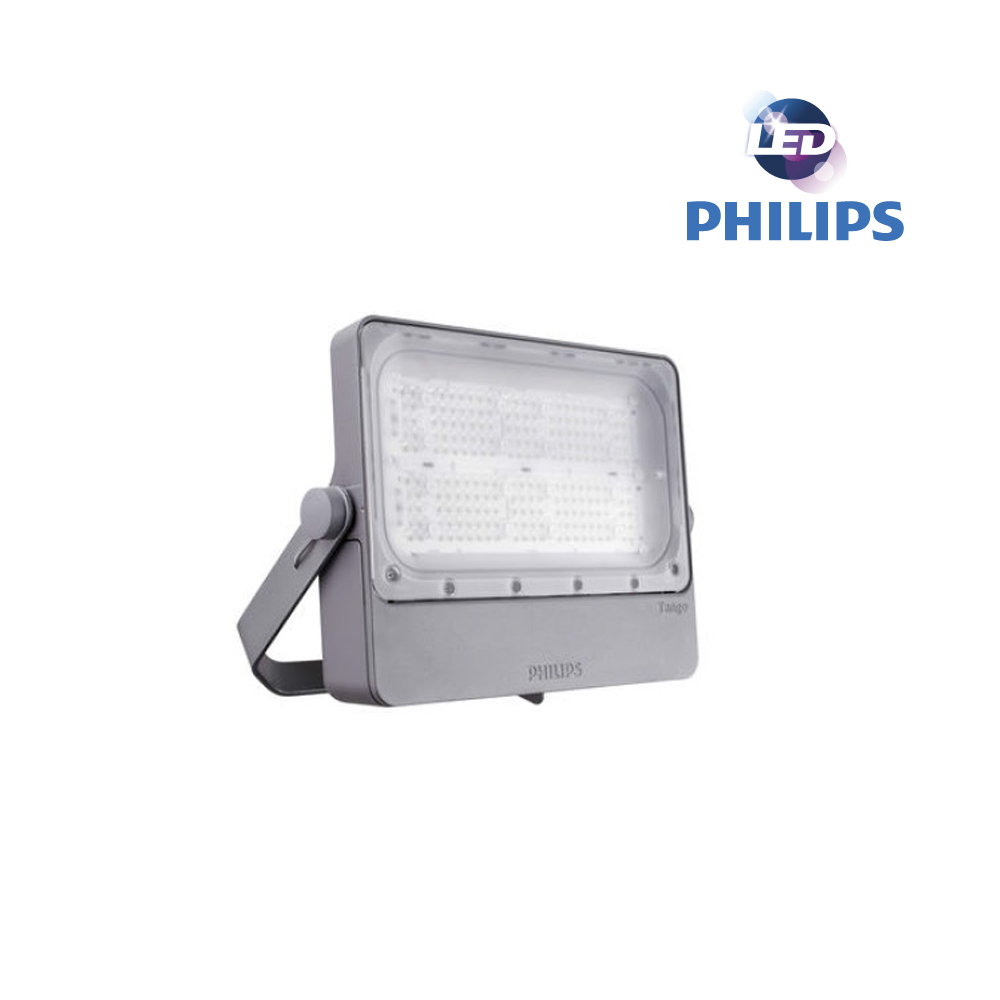

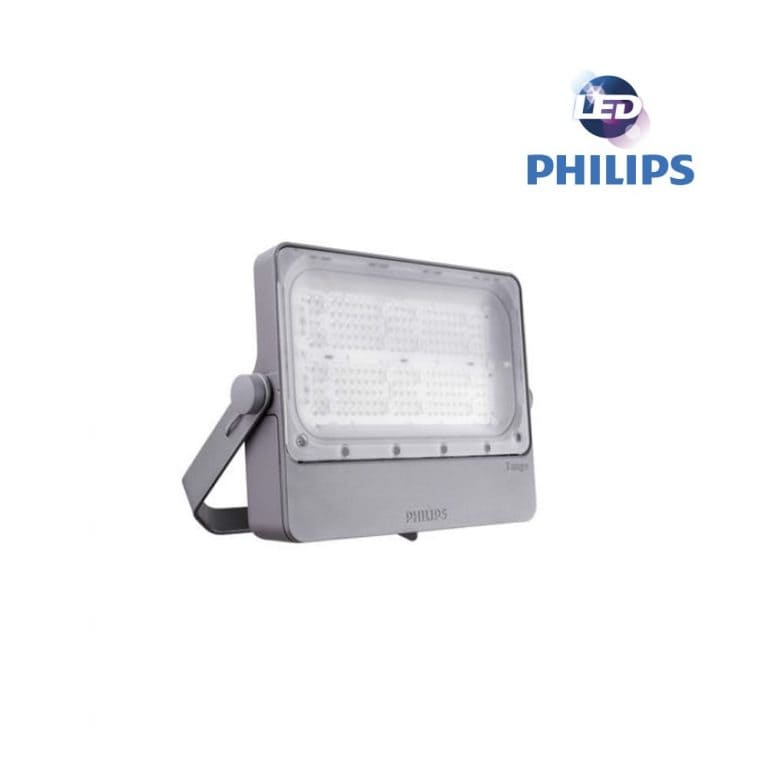

Philips Flood Light BVP432 LED272 CW 200W

General Information

Lighting Technology :

• LED

Driver included :

• Yes

Light Technical

Luminous Flux :

• 27,200 lumen

Correlated Color Temperature (Nom) :

• 5700 K

Luminous Efficacy (rated) (Nom) :

• 136 lm/W

Color rendering index (CRI) :

• >70

Light source color :

• 757 cool white

Optical cover/lens type :

• Polycarbonate bowl/cover

Operating and Electrical

Input Voltage :

• 220 to 240 V

Line Frequency :

• 50 or 60 Hz

Input Frequency :

• 50 or 60 Hz

Power Consumption :

• 200 W

Power Factor (Fraction) :

• 0.9

Connection :

• Flying leads/wires

Cable :

• Cable 1.5 m without plug

Temperature

Ambient temperature range :

• -40 to +50 °C

Controls and Dimming

Dimmable :

• No

Control interface :

• –

Mechanical and Housing

Housing material :

• Aluminum die–cast

Optical cover/lens material :

• Polycarbonate

Housing Color :

• Grey

Overall length :

• 347 mm

Overall width :

• 414 mm

Overall height :

• 77 mm

Dimensions (Height x Width x Depth) :

• 77 x 414 x 347 mm

Approval and Application

Ingress protection code :

• IP66 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [ 5 J vandal-protected]

Protection class IEC :

• Safety class I

CE mark :

• CE mark

Initial performance (IEC compliant)

Luminous flux tolerance :

• +/-10%

Power consumption tolerance :

• +/-10%

Product data

Full product code :

• 871951452447700

Order product name :

• BVP432 LED272/CW 220~240V 200W SWB GM

Order code :

• 911401691206

Numerator – Quantity Per Pack :

• 1

Numerator – Packs per outer box :

• 1

Material number (12NC) :

• 911401691206

Full product name :

• BVP432 LED272/CW 220~240V 200W SWB GM

EAN/UPC – Case :

• 8719514524477
