General information
Lamp colour code :
- 740 neutral white
Driver included :
- Yes
Optical cover/lens type :
- PC [ Polycarbonate bowl/cover]
Control interface :
- –
Connection :
- Flying leads/wires
Cable :
- Cable 1.5 m without plug (C1K5)
Protection class IEC :
- Safety class I (I)
CE mark :
- CE mark
Operating and electrical
Input Voltage :
- 220 to 240 V
Input frequency :
- 50 or 60 Hz
Power factor (min.) :
- 0.9
Controls and dimming
Dimmable :
- No
Mechanical and housing
Housing material :
- Aluminum die–cast
Optical cover/lens material :
- Polycarbonate
Overall length :
- 523 mm
Overall width :
- 559 mm
Overall height :
- 71 mm
Colour :
- Grey
Dimensions (height x width x depth) :
- 71 x 559 x 523 mm
Approval and application
Ingress protection code :
- IP66 [ Dust penetration-protected, jet-proof]
Mech. impact protection code :
- IK08 [ 5 J vandal-protected]
Initial performance (IEC compliant)
Initial luminous flux (system flux) :
- 40900 lm
Luminous flux tolerance :
- +/-10%
Initial LED luminaire efficacy :
- 134 lm/W
Lamp colour temperature :
- 4000 K
Colour Rendering Index :
- >70
Initial input power :
- 305 W
Power consumption tolerance :
- +/-10%
Application conditions
Ambient temperature range :
- -40 to +50 °C
Product data
Full product code :
- 871951454096500
Order product name :

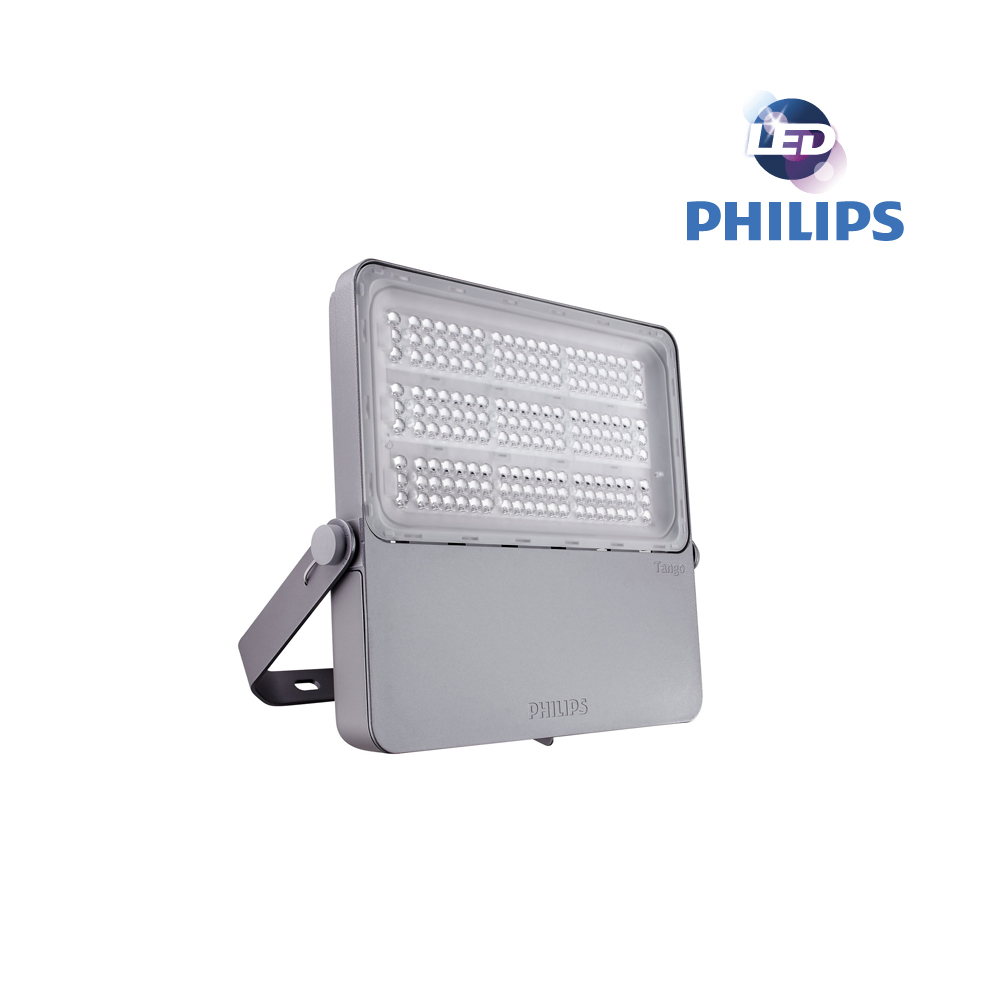

- BVP433 LED409/NW 220~240V 305W AMB GM
EAN/UPC – product :
- 8719514540965
Order code :
- 911401601107
SAP numerator – quantity per pack :
- 1
Numerator – packs per outer box :
- 1
SAP material :
- 911401601107
Net Weight (Piece) :
- 12.160 kg
