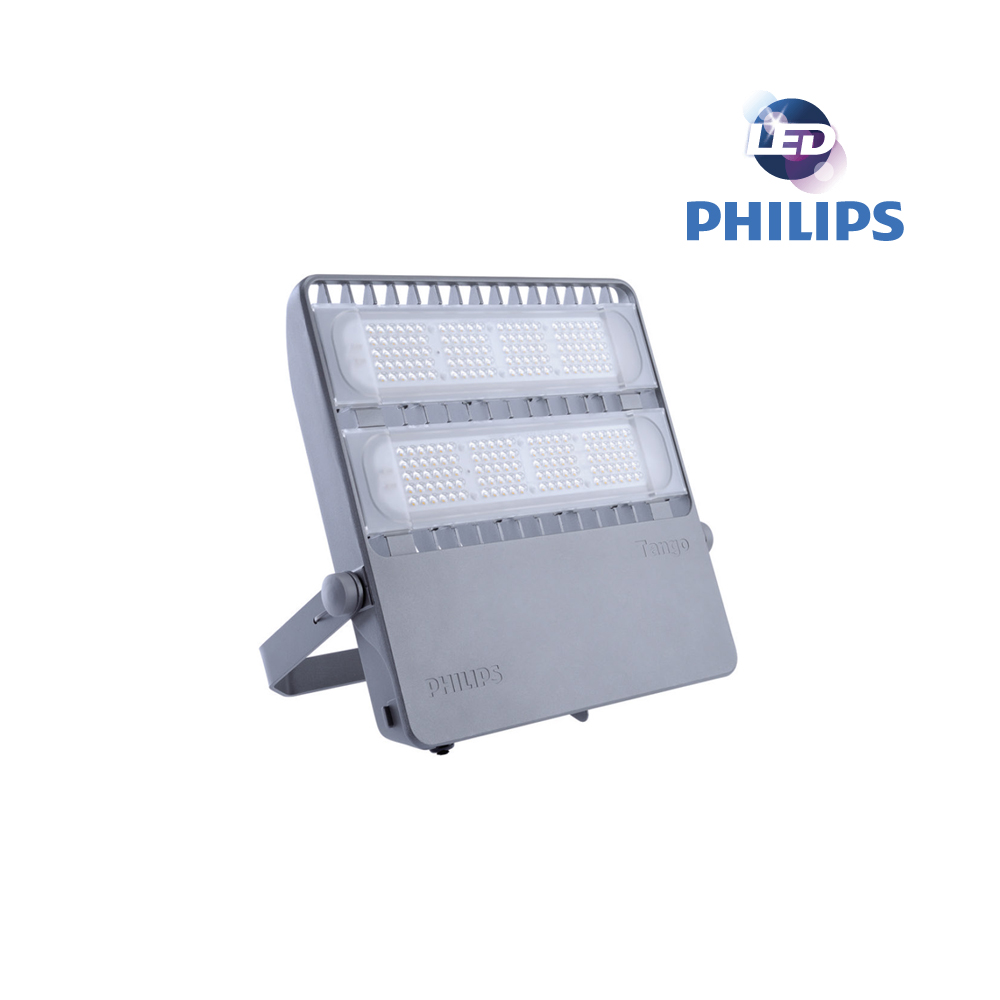

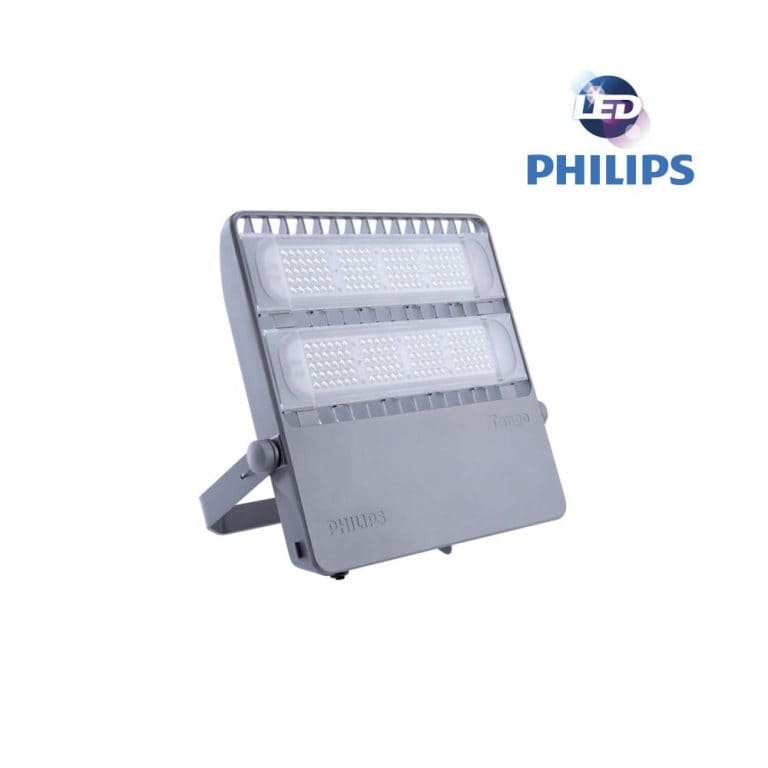

Philips Flood Light BVP382 LED156 CW 120W

General information

Lamp family code :

• –

Light source replaceable :

• Yes

Number of gear units :

• –

Driver included :

• Yes

Light source engine type :

• LED

Lighting Technology :

• LED

CE mark :

• CE mark

Warranty period :

• 3 years

Flammability mark :

• –

ENEC mark :

• –

EU RoHS compliant :

• No

Light Technical

Luminous Flux :

• 15,600 lm

Standard tilt angle posttop :

• –

Standard tilt angle side entry :

• –

Correlated Color Temperature (Nom) :

• 5700 K

Luminous Efficacy (rated) (Nom) :

• 130 lm/W

Color rendering index (CRI) :

• 70

Light source color :

• Cool white

Optical cover type :

• Polycarbonate micro lens optic

Luminaire light beam spread :

• 85° x 85°

Optic type outdoor :

• Symmetrical wide beam

Operating and Electrical

Input Voltage :

• 220-240 V

Line Frequency :

• 50 or 60 Hz

Initial CLO power consumption :

• – W

Average CLO power consumption :

• – W

End CLO power consumption :

• – W

Power Consumption :

• 120 W

Power Factor (Fraction) :

• 0.95

Connection :

• Flying leads/wires

Cable :

• Cable 1.5 m without plug

Number of products on MCB of 16 A type B :

• –

Temperature

Ambient temperature range :

• -40 to +50 °C

Controls and Dimming

Dimmable :

• No

Driver/power unit/transformer :

• Power supply unit (On/Off)

Control interface :

• –

Constant light output :

• No

Mechanical and Housing

Housing Material :

• Aluminum die cast

Reflector material :

• –

Optic material :

• Polycarbonate

Optical cover material :

• Polycarbonate

Fixation material :

• Steel

Housing Color :

• Aluminum and gray

Mounting device :

• Mounting bracket adjustable

Optical cover shape :

• –

Optical cover finish :

• Frosted

Overall length :

• 500 mm

Overall width :

• 97 mm

Overall height :

• 498 mm

Effective projected area :

• 0.17 m²

Dimensions (Height x Width x Depth) :

• 498 x 97 x 500 mm

Approval and Application

Ingress protection code :

• IP66 [Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [5 J vandal-protected]

Surge Protection (Common/Differential) :

• Luminaire surge protection level until 15 kV
  differential mode and 15 kV common mode

Protection class IEC :

• Safety class I

Initial Performance (IEC Compliant)

Luminous flux tolerance :

• +/-10%

Initial chromaticity :

• SDCM<=7

Power consumption tolerance :

• +/-10%

Application Conditions

Maximum dim level :

• Not applicable

Product Data

Order product name :

• BVP382 LED156/CW 120W 220-240V SWB GM

Full product name :

• BVP382 LED156/CW 120W 220-240V SWB GM

Full product code :

• 911401616305

Order code :

• 911401616305

Material Nr. (12NC) :

• 911401616305

Numerator – Quantity Per Pack :

• 1

Numerator – Packs per outer box :

• 1
