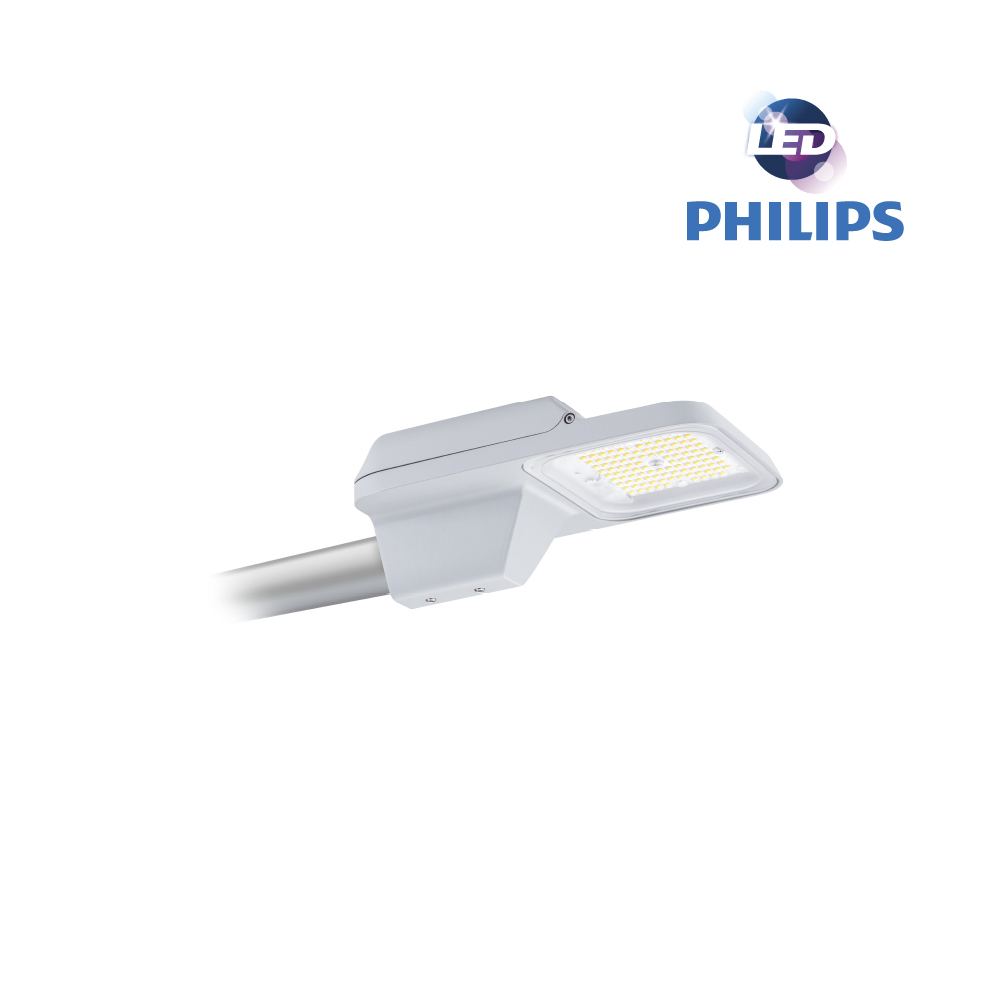

โคมไฟถนน Philips BRP491 LED134 WW 100W

General information

Driver included :

• Yes

Service tag :

• Yes

Light Technical

Luminous Flux :

• 13,400 lm

Correlated Color Temperature (Nom) :

• 3000 K

Luminous Efficacy (rated) (Nom) :

• 133 lm/W

Color rendering index (CRI) :

• >70

Light source color :

• 730 warm white

Operating and Electrical

Input Voltage :

• 220 to 240 V

Line Frequency :

• 50 or 60 Hz

Power Consumption :

• 100 W

Power Factor (Fraction) :

• 0.95

Connection :

• Screw connection block 3-pole

Cable :

• –

Protection class IEC :

• Safety class I

Controls and Dimming

Dimmable :

• Yes

Control interface :

• Analog

Mechanical and Housing

Housing Material :

• Aluminium pressure die cast

Optical cover material :

• Polycarbonate

Housing Color :

• Aluminum and gray

Overall length :

• 355 mm

Overall width :

• 230 mm

Overall height :

• 136 mm

Dimensions (Height x Width x Depth) :

• 136 x 230 x 355 mm

Ingress protection code :

• IP66 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [ 5 J vandal-protected]

Optical cover type :

• Polycarbonate micro lens optic

Net Weight (Piece) :

• 3.600 kg

Approval and Application

CE mark :

• Yes

Ambient temperature range :

• -40 to +50 °C

Initial Performance (IEC Compliant)

Luminous flux tolerance :

• +/-10%

Power consumption tolerance :

• +/-10%

Product data

Order product name :

• BRP491 LED134/WW 100W 220-240V DM GM

Full product name :

• BRP491 LED134/WW 100W 220-240V DM GM

Full product code :

• 872016972825700

Order code :

• 911401674606

Material Nr. (12NC) :

• 911401674606

Numerator – Quantity Per Pack :

• 1

EAN/UPC – Product/Case :

• 8720169728257

Numerator – Packs per outer box :

• 1

EAN/UPC – Case :

• 8720169728257
