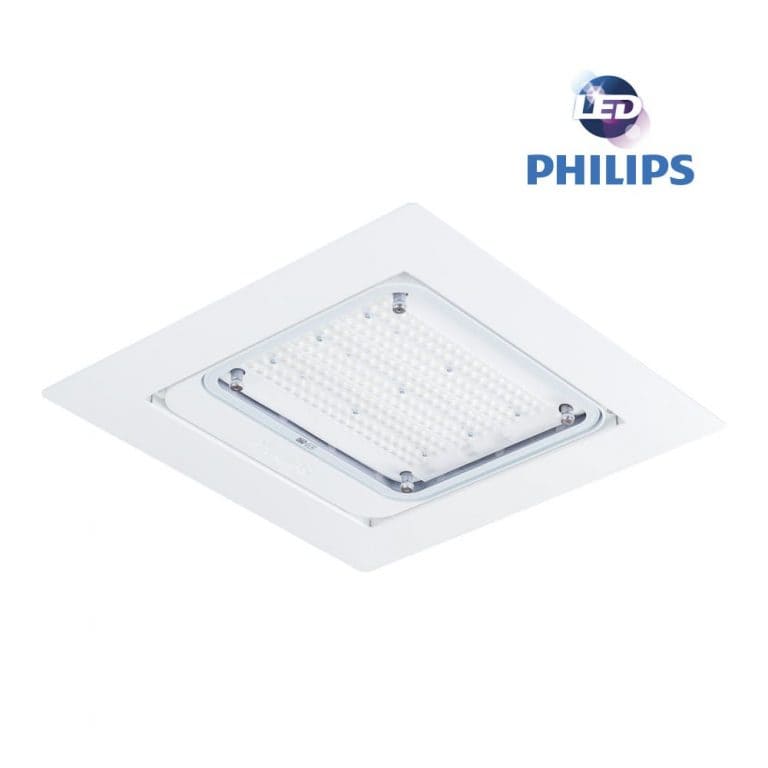

โคมไฟไฮเบย์ Philips BBP500 LED140 CW 91W

General Information

Light source engine type :

• LED

Service tag :

• Yes

Light Technical

Luminous Flux :

• 14,079 lm

Correlated Color Temperature (Nom) :

• 6500 K

Luminous Efficacy (rated) (Nom) :

• 155 lm/W

Color rendering index (CRI) :

• >80

Light source color :

• 865 cool daylight

Operating and Electrical

Input Voltage :

• 220-240 V

Line Frequency :

• 50 to 60 Hz

Inrush current :

• 35.4 A

Power Consumption :

• 91 W

Power Factor (Fraction) :

• 0.95

Number of products on MCB of 16 A type B :

• 8

Protection class IEC :

• Safety class I

Controls and Dimming

Dimmable :

• No

Control interface :

• –

Mechanical and Housing

Housing Material :

• Aluminium die-cast ADC1 – alloy grade (EN AC-47100)

Optical cover material :

• Tempered glass

Housing Color :

• White

Optical cover finish :

• Clear

Overall length :

• 423 mm

Overall width :

• 400 mm

Overall height :

• 90 mm

Dimensions (Height x Width x Depth) :

• 96 x 400 x 423 mm

Ingress protection code :

• IP65 [Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK07 [2 J reinforced]

Optical cover type :

• Clear glass

Net Weight (Piece) :

• 4.790 kg

Approval and Application

Flammability mark :

• For mounting on normally flammable surfaces

CE mark :

• Yes

Ambient temperature range :

• -40 to +50 °C

Initial Performance (IEC Compliant)

Luminous flux tolerance :

• +/-10%

Power consumption tolerance :

• +/-10%

Product Data

Order product name :

• BBP500 G4 LED140/CW PSU S-MB

Full product name :

• BBP500 G4 LED140/CW PSU S-MB

Full product code :

• 872016954790200

Order code :

• 911401594732

Material Nr. (12NC) :

• 911401594732

Numerator – Quantity Per Pack :

• 1

EAN/UPC – Product/Case :

• 8720169547902

Numerator – Packs per outer box :

• 1

EAN/UPC – Case :

• 8720169547902
