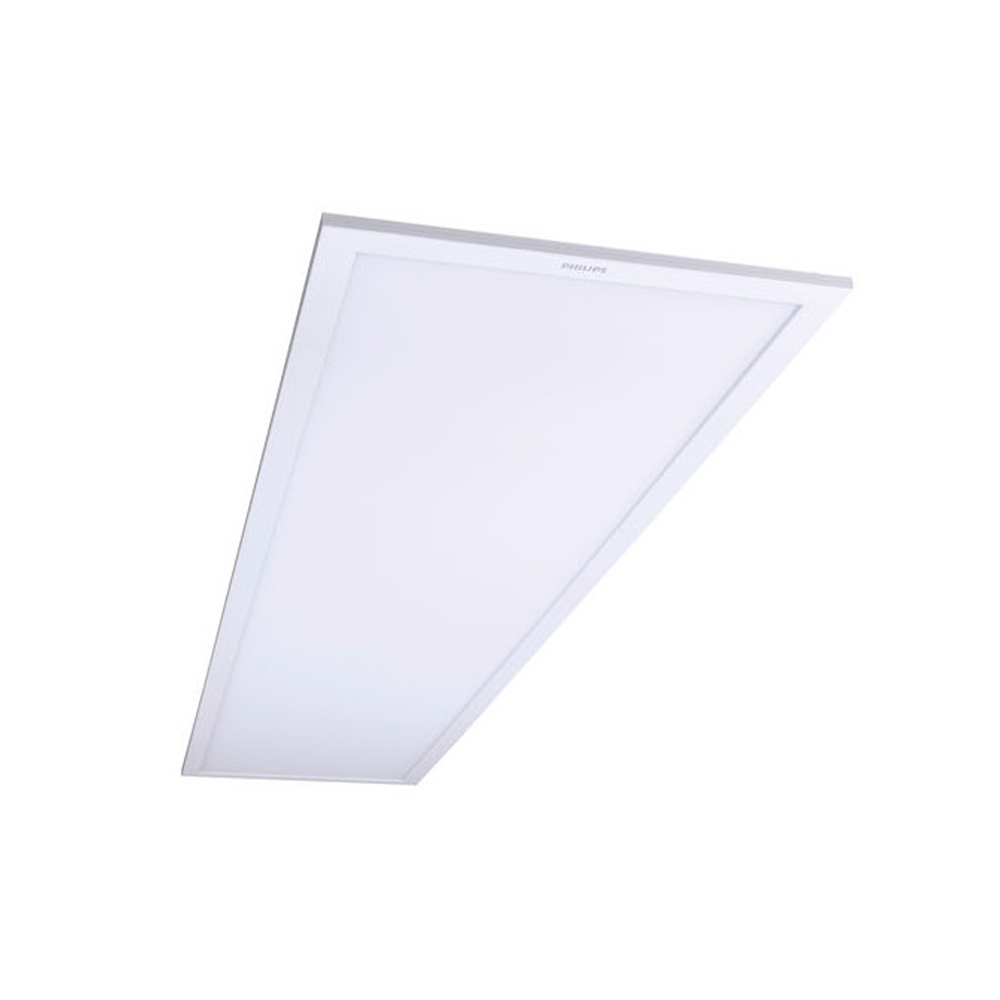

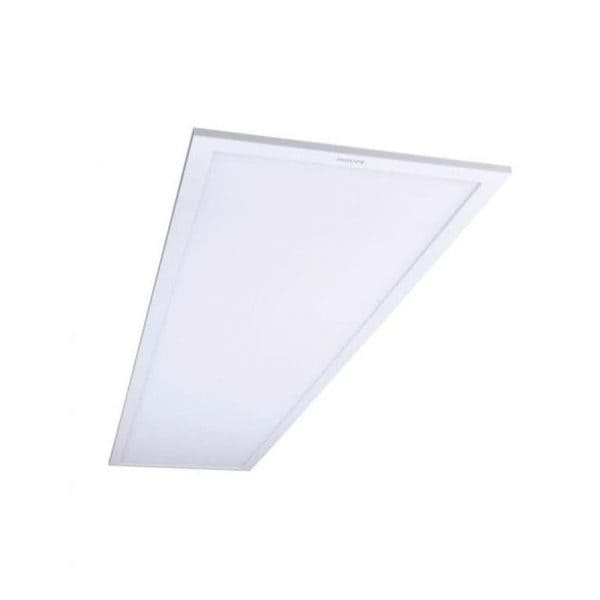

Philips PANEL LIGHT TYPE RC160V LED40S 840 W30L120 PSU

General information

Light source replaceable :

• No

Number of gear units :

• 1 unit

Driver included :

• Yes

Light source engine type :

• LED

Service tag :

• Yes

CE mark :

• CE mark

Warranty period :

• 3 years

Flammability mark :

• –

ENEC mark :

• –

Glow-wire test :

• Temperature 650 °C, duration 30 s

EU RoHS compliant :

• Yes

Light Technical

Luminous Flux :

• 4,000 lm

Correlated Color Temperature (Nom) :

• 4000 K

Luminous Efficacy (rated) (Nom) :

• 110 lm/W

Color rendering index (CRI) :

• >80

Beam angle of light source :

• – degree(s)

Light source color :

• 840 neutral white

Optic type :

• Wide beam

Optical cover type :

• Polystyrene bowl/cover prismatic

Luminaire light beam spread :

• 110°

Operating and Electrical

Input Voltage :

• 220 to 240 V

Line Frequency :

• 50 or 60 Hz

Initial CLO power consumption :

• NA W

Average CLO power consumption :

• NA W

Inrush current :

• 15.8 A

Inrush time :

• 181 ms

Power Consumption :

• 36 W

Power Factor (Fraction) :

• 0.9

Connection :

• Internal connector

Cable :

• –

Number of products on MCB of 16 A type B :

• 90

Temperature

Ambient temperature range :

• -20 to +45 °C

Controls and Dimming

Dimmable :

• No

Driver/power unit/transformer :

• –

Control interface :

• –

Constant light output :

• No

Mechanical and Housing

Housing Material :

• Aluminum

Reflector material :

• –

Optic material :

• Polystyrene

Optical cover material :

• Polystyrene

Fixation material :

• Steel

Housing Color :

• White

Optical cover finish :

• Frosted

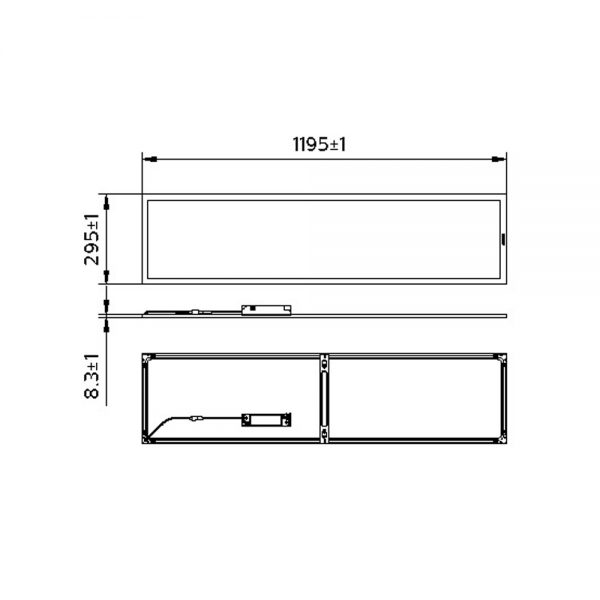

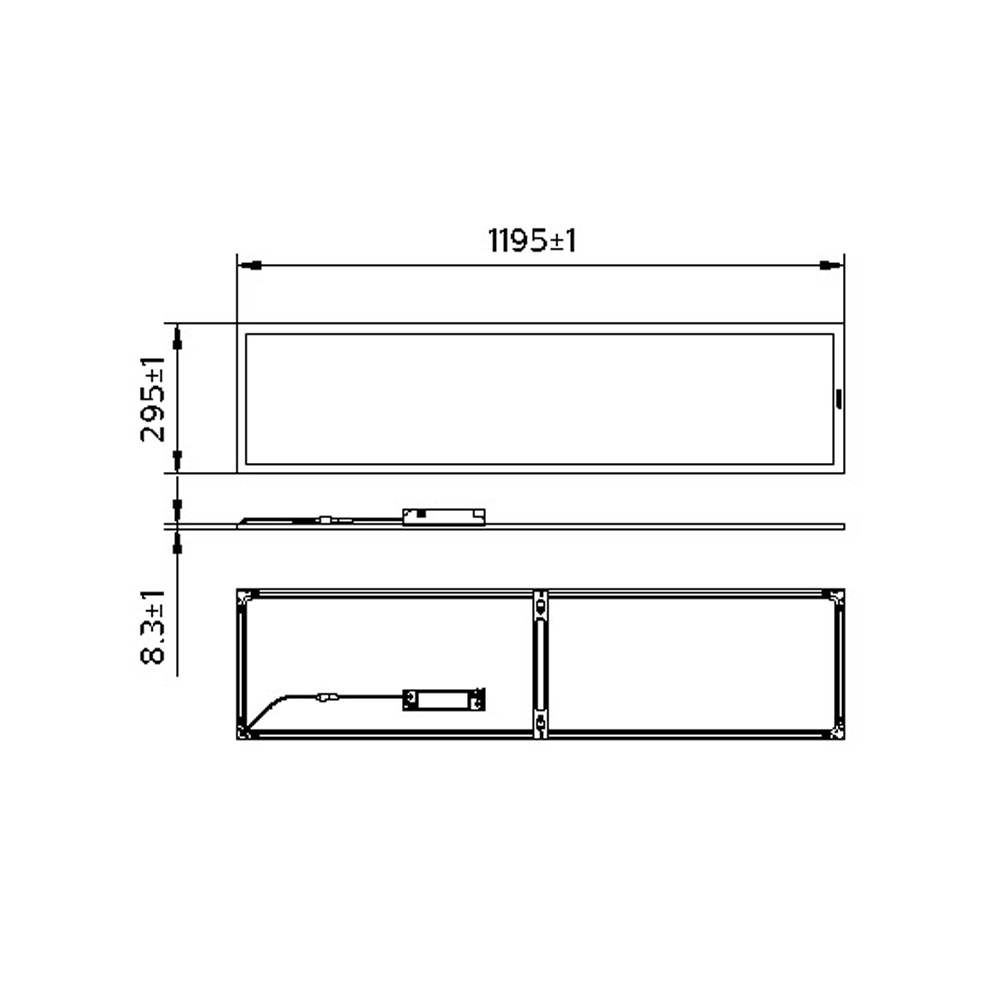

Overall length :

• 1,195 mm

Overall width :

• 295 mm

Overall height :

• 8.3 mm

Dimensions (Height x Width x Depth) :

• 8 x 295 x 1195 mm

Approval and Application

Ingress protection code :

• IP20 [Finger-protected]

Mech. impact protection code :

• IK03 [0.3 J]

Protection class IEC :

• Safety class II

Initial Performance (IEC Compliant)

Luminous flux tolerance :

• +/-5%

Initial chromaticity :

• (0.43, 0.40) SDCM<4

Power consumption tolerance :

• +/-10%

Application Conditions

Maximum dim level :

• Not applicable

Product Data

Order product name :

• RC160V LED40S 840 W30L120 PSU

Full product name :

• RC160V LED40S 840 W30L120 PSU

Full product code :

• 872016972801199

Order code :

• 911401719522

Material Nr. (12NC) :

• 911401719522

Numerator – Quantity Per Pack :

• 1

EAN/UPC – Product/Case :

• 8720169728011

Numerator – Packs per outer box :

• 2

EAN/UPC – Case :

• 8720169728011
