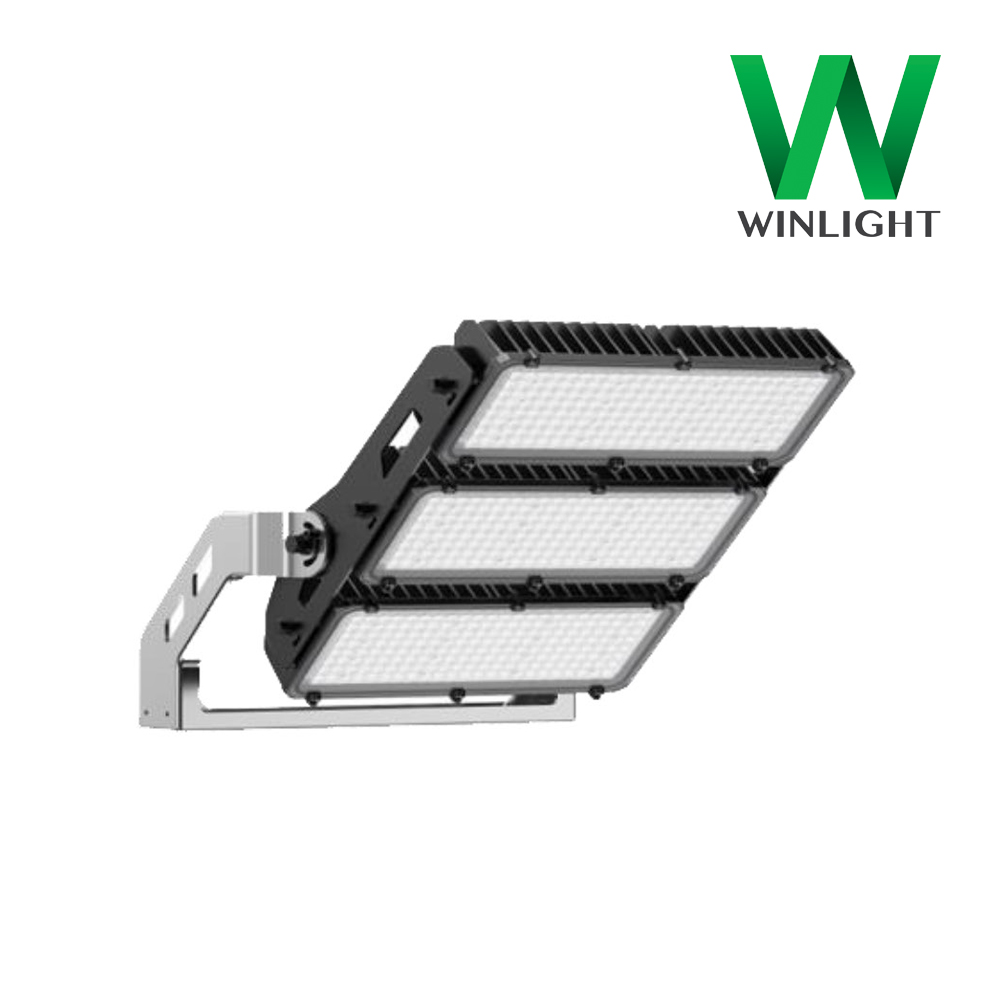

โคมไฟ Winlight FLOOD LIGHT MSPORTS V3

   MSPORTS V3

SPECIFICATION

Series : MSPORTS V3

Rated Power (W) :

• 400W
• 500W
• 600W
• 800W
• 1000W
• 1200W
• 1500W
• 1800W

Input Voltage :

• 220-240Vac , 50/60Hz

Power Factor :

• > 0.9

Harmonic (%THDi) :

• < 15%

Color Temperature :

• 3000K , 4000K , 5700K

Efficacy (lm/W) :

• 140 lm/W , 150 lm/W

CRI :

• > 70 Ra (Option : 80 Ra , 90 Ra)

Beam Angle :

• Asymmetrical and Narrow beam (SMD3737)
• 30° , 45° , 60° , Asymmetrical (SMD5050)

Driver :

• Done / Inventronics / Upshine

LED Chip :

• SMD #3737 (140 lm/W) , SMD #5050 (150 lm/W)

Housing Meterials :

• Die-Casting Aluminium with PC Lens and Tempered Glass Cover

Color :

• Black

Operating Temperature :

• – 30°C to +40°C

Protection Class :

• IP 66

IK Grade :

• IK 08

Installation :

• Standard Bracket

Surge Protection :

• 20KV line-earth
