General information
Driver included :
- Yes
Lighting Technology :
- LED
CE mark :
- CE mark
Light Technical
Luminous Flux :
- 30,600 lumen
Correlated Color Temperature (Nom) :
- 5700 K
Luminous Efficacy (rated) (Nom) :
- 134 lm/W
Color rendering index (CRI) :
- >70
Light source color :
- 757 cool white
Optical cover/lens type :
- Polycarbonate micro lens optic
Operating and Electrical
Input Voltage :
- 220 to 240 V
Line Frequency :
- 50 or 60 Hz
Power Consumption :
- 230 W
Power Factor (Fraction) :
- 0.9
Connection :
- Flying leads/wires
Cable :
- Cable 0.5 m without plug
Temperature
Ambient temperature range :
- -40 to +50 °C
Controls and Dimming
Dimmable :
- No
Control interface :
- –
Mechanical and Housing
Housing Material :
- Aluminum die cast
Optical cover material :
- Polycarbonate
Housing Color :
- Aluminum and gray
Approval and Application
Ingress protection code :
- IP66 [Dust penetration-protected, jet-proof]
Mech. impact protection code :
- IK08 [5 J vandal-protected]
Protection class IEC :
- Safety class I
Initial Performance (IEC Compliant)
Luminous flux tolerance :
- +/-10%
Power consumption tolerance :
- +/-10%
Product Data
Order product name :

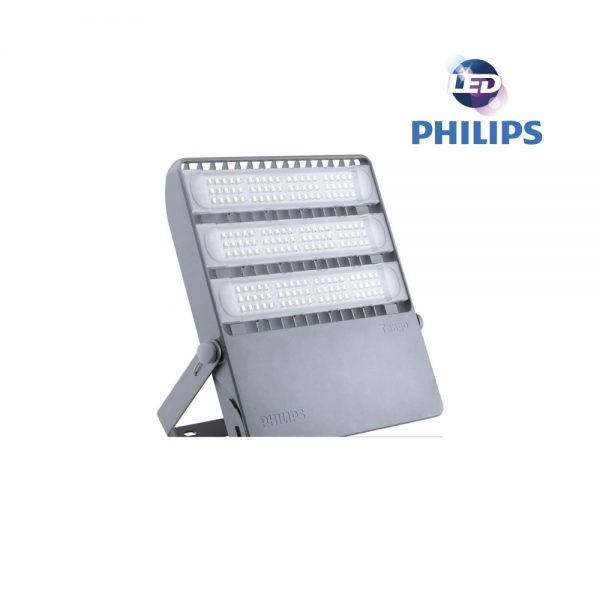

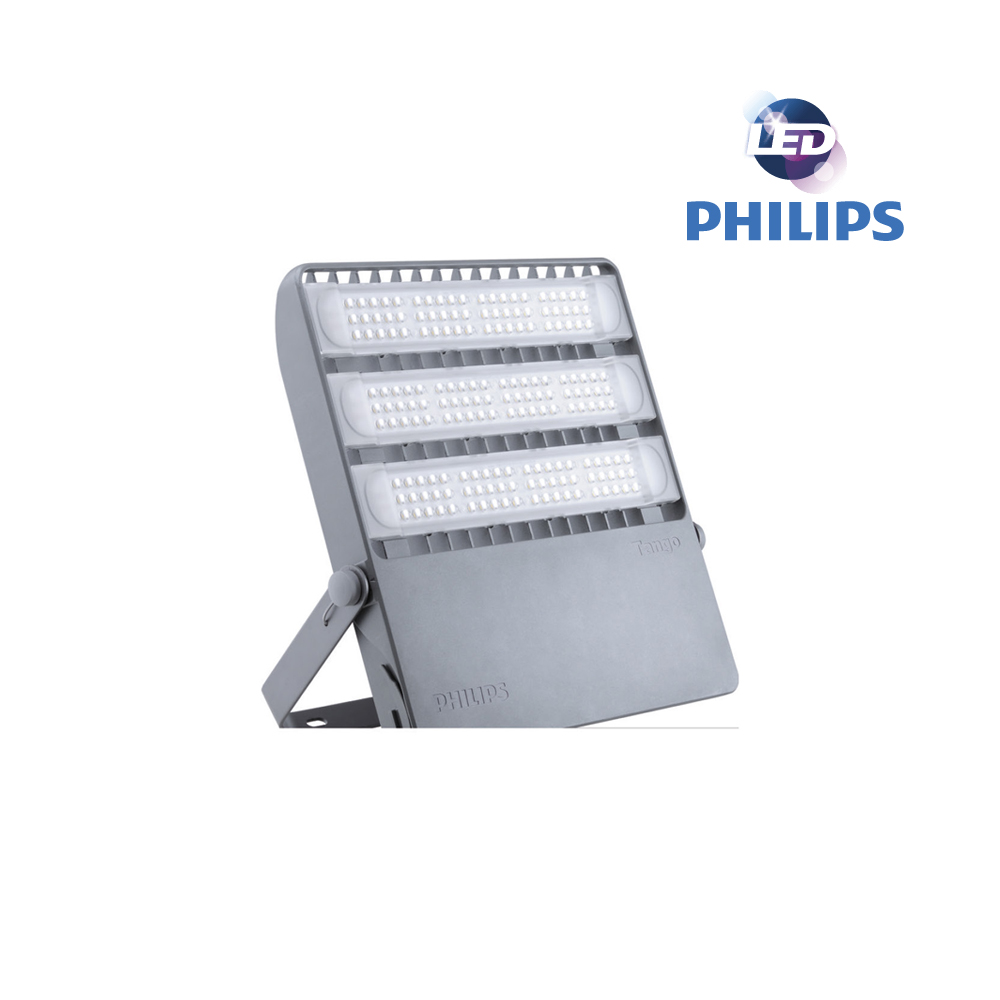

- BVP383 LED306/CW 230W 220-240V AWB GM
Full product name :
- BVP383 LED306/CW 230W 220-240V AWB GM
Full product code :
- 911401600606
Order code :
- 911401600606
Material Nr. (12NC) :
- 911401600606
Numerator – Quantity Per Pack :
- 1
Numerator – Packs per outer box :
- 1
