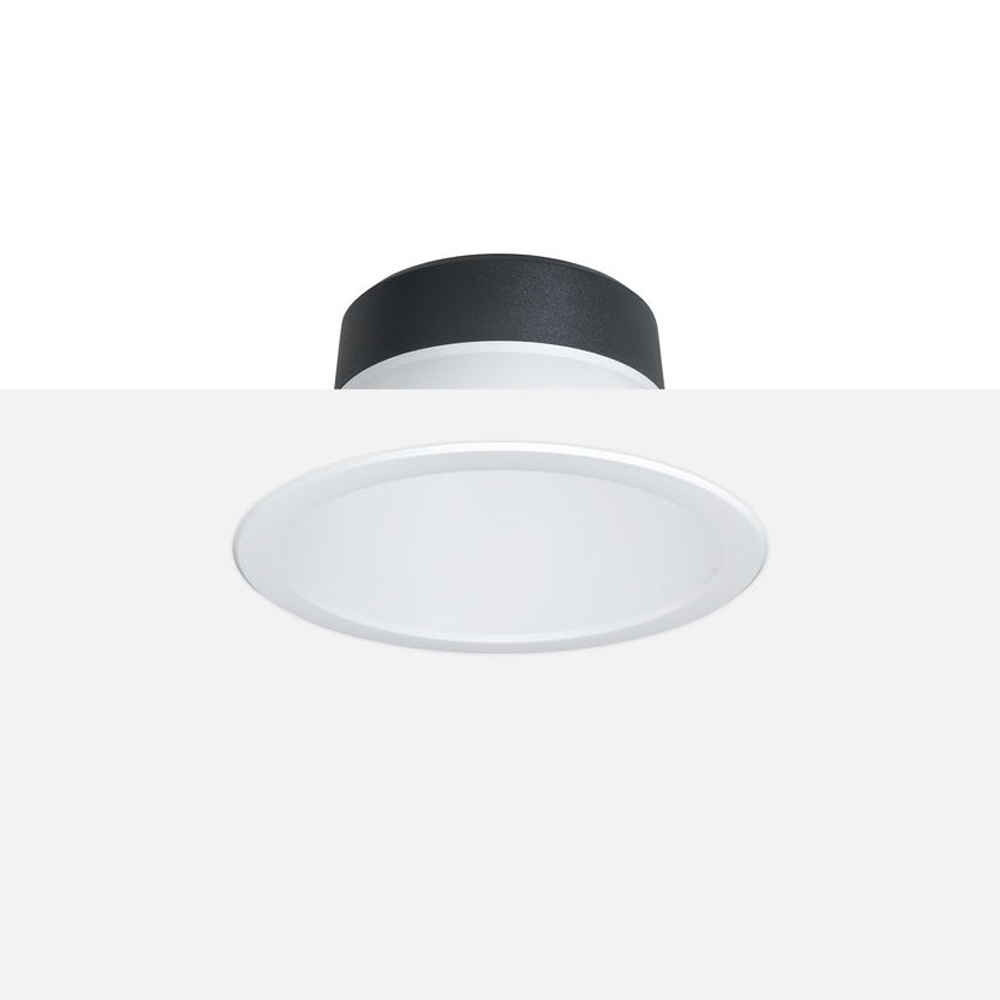

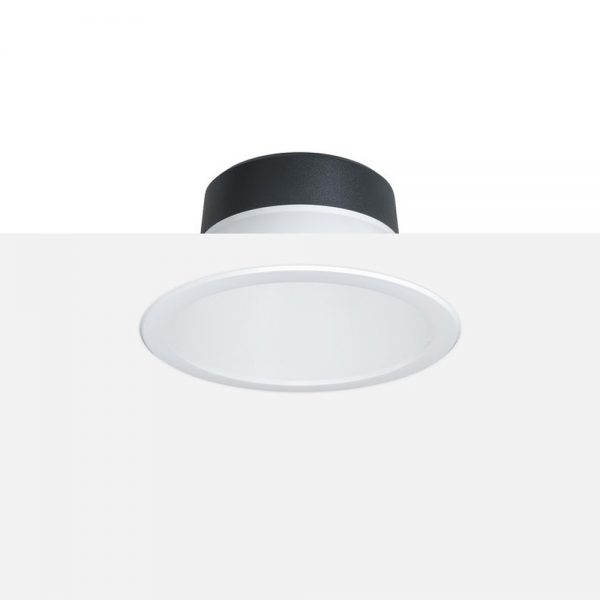

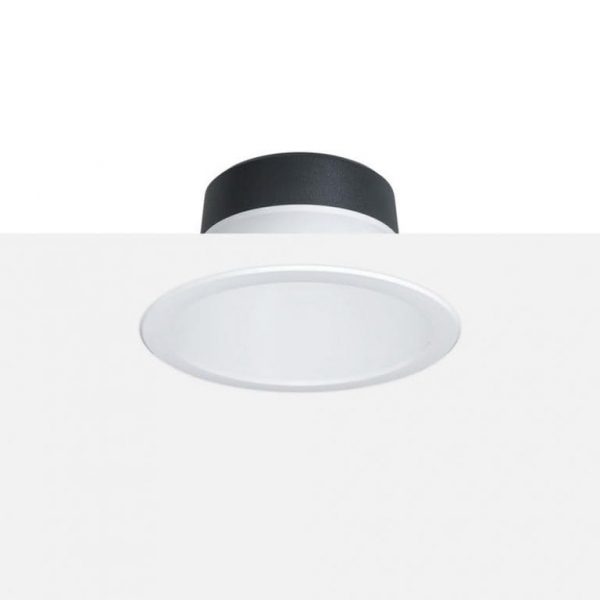

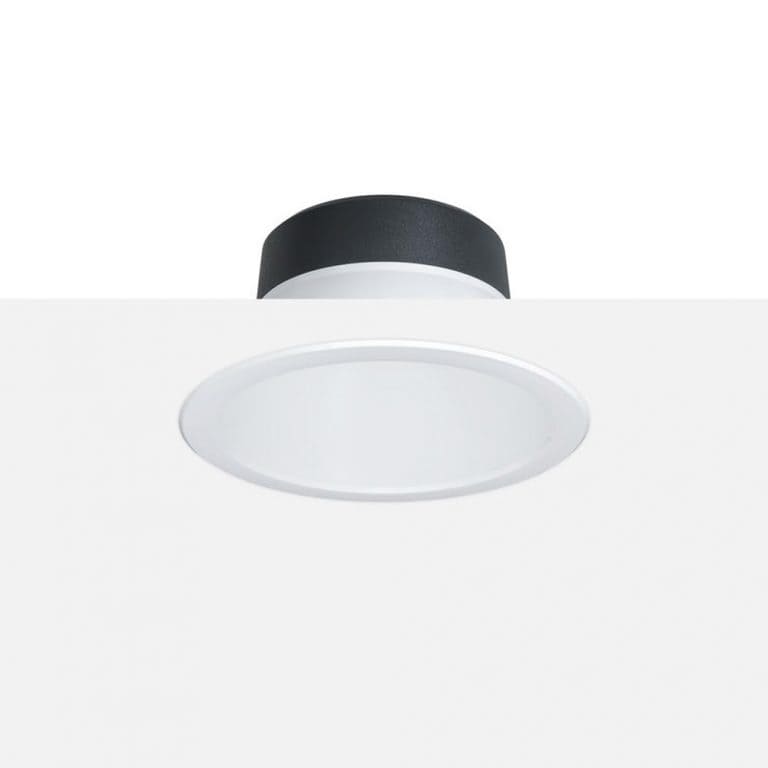

Philips Downlight DN391B LED13 865 P10PSU D150 WH

General information

Number of gear units :

• –

Gear :

• –

Driver included :

• Yes

Light source engine type :

• LED

Service tag :

• Yes

Warranty period :

• 3 years

Light Technical

Luminous Flux :

• 1,300 lm

Correlated Color Temperature (Nom) :

• 6500 K

Luminous Efficacy (rated) (Nom) :

• 138 lm/W

Color rendering index (CRI) :

• >80

Number of light sources :

• 1

Light source color :

• 865 cool daylight

Optic type :

• White reflector and opal cover

Unified glare rating CEN :

• 24

Operating and Electrical

Input Voltage :

• 220 to 240 V

Line Frequency :

• 50 or 60 Hz

Inrush current :

• 14 A

Inrush time :

• 0.01 ms

Power Consumption :

• 9.8 W

Power Factor (Fraction) :

• 0.9

Connection :

• Flying leads/wires

Cable :

• 2×0.75mm² Cable 0.2 m without plug

Number of products on MCB of 16 A type B :

• 204

Suitable for random switching :

• No

Protection class IEC :

• Safety class II

Controls and Dimming

Dimmable :

• No

Control interface :

• –

Maximum dim level :

• Not applicable

Mechanical and Housing

Housing Material :

• Aluminum die-cast

Reflector material :

• Polycarbonate

Optic material :

• Polycarbonate

Optical cover material :

• Polycarbonate

Housing Color :

• Aluminum

Mounting device :

• Frame for recessed mounting

Optical cover finish :

• Matte

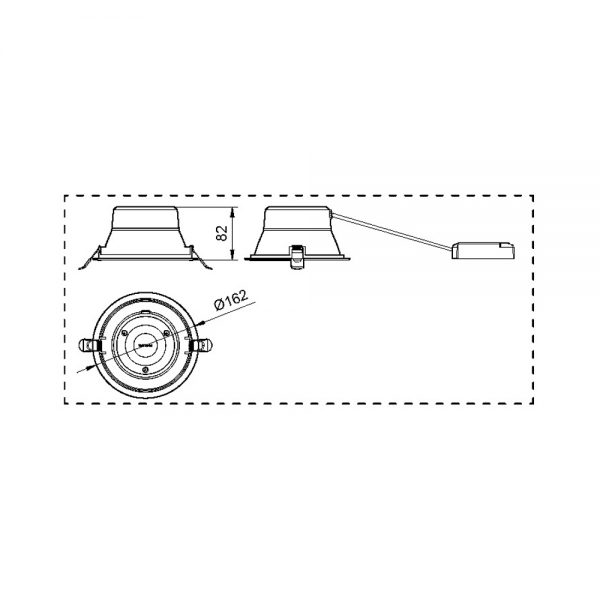

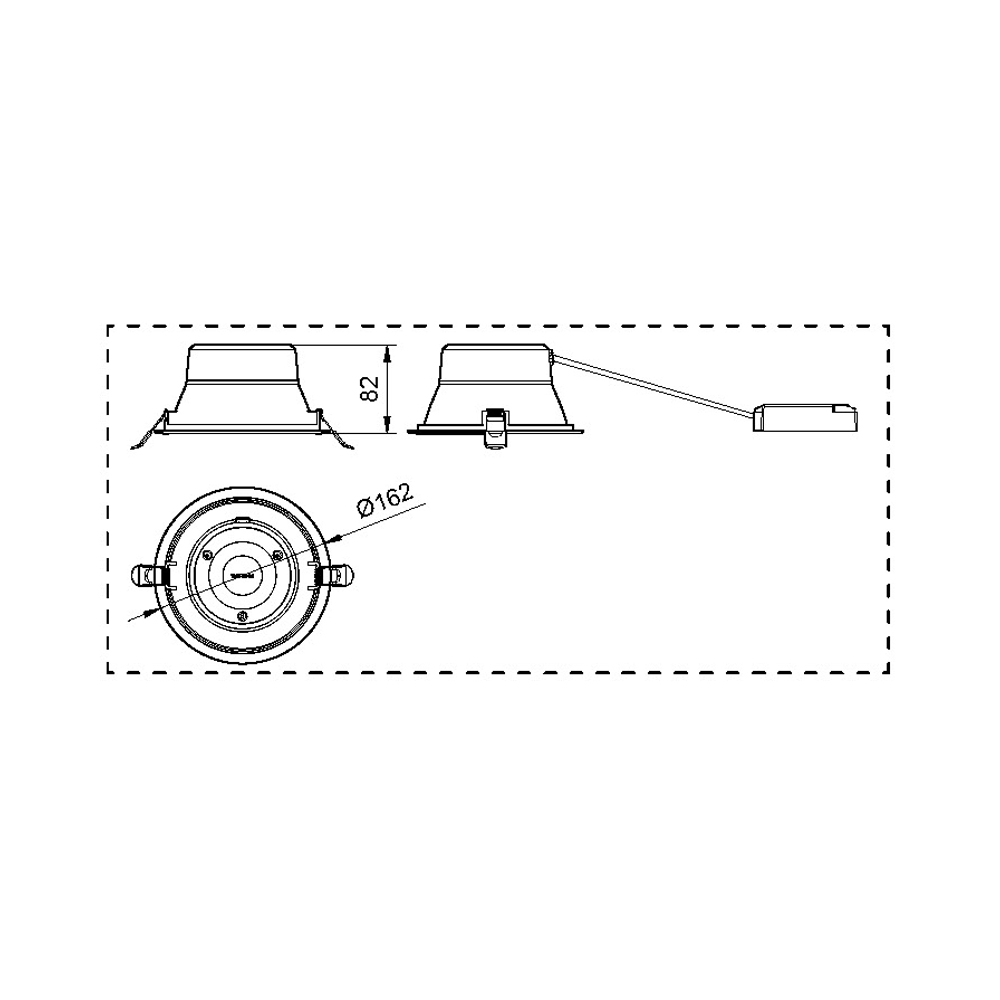

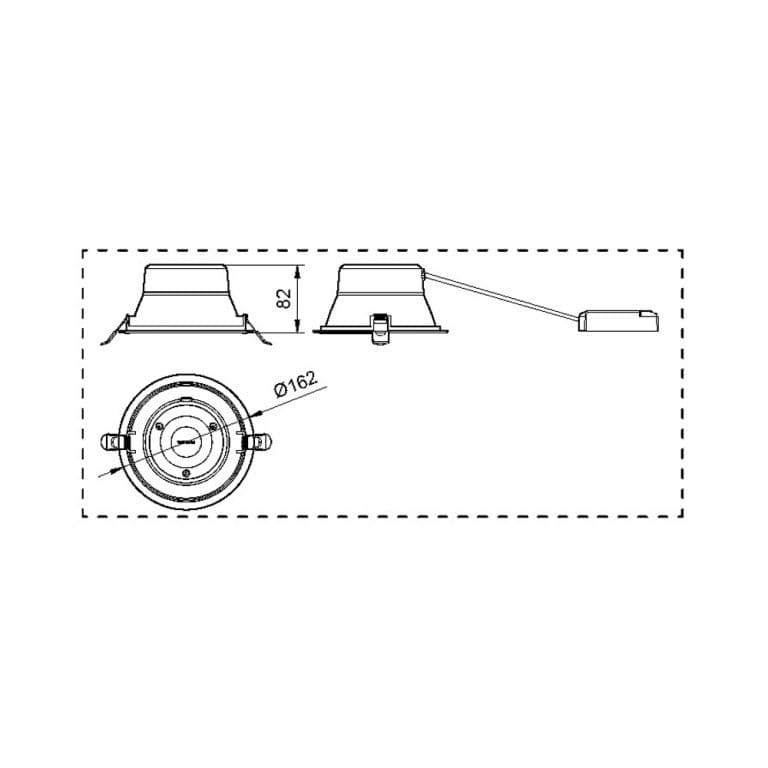

Overall height :

• 80 mm

Overall diameter :

• 162 mm

Ingress protection code :

• IP20 [Finger-protected]

Mech. impact protection code :

• IK03 [0.3 J]

Optical cover type :

• Polycarbonate Diffuser

Net Weight (Piece) :

• 0.340 kg

Approval and Application

Glow-wire test :

• Temperature 650 °C, duration 5 s

Flammability mark :

• –

CE mark :

• Yes

ENEC mark :

• –

Photobiological risk :

• Photobiological risk group 1 @200mm to EN62778

EU RoHS compliant :

• Yes

Performance ambient temperature Tq :

• 25 °C

Ambient temperature range :

• -20 to +40 °C

Initial Performance (IEC Compliant)

Luminous flux tolerance :

• +/-10%

Initial chromaticity :

• 5

Power consumption tolerance :

• +/-10%

Product Data

Order product name :

• DN391B LED13/865 P10PSU D150 WH GMG2HE

Full product name :

• DN391B LED13/865 P10PSU D150 WH GMG2HE

Order code :

• 911401532444

Material Nr. (12NC) :

• 911401532444

Numerator – Quantity Per Pack :

• 1

Numerator – Packs per outer box :

• 4
