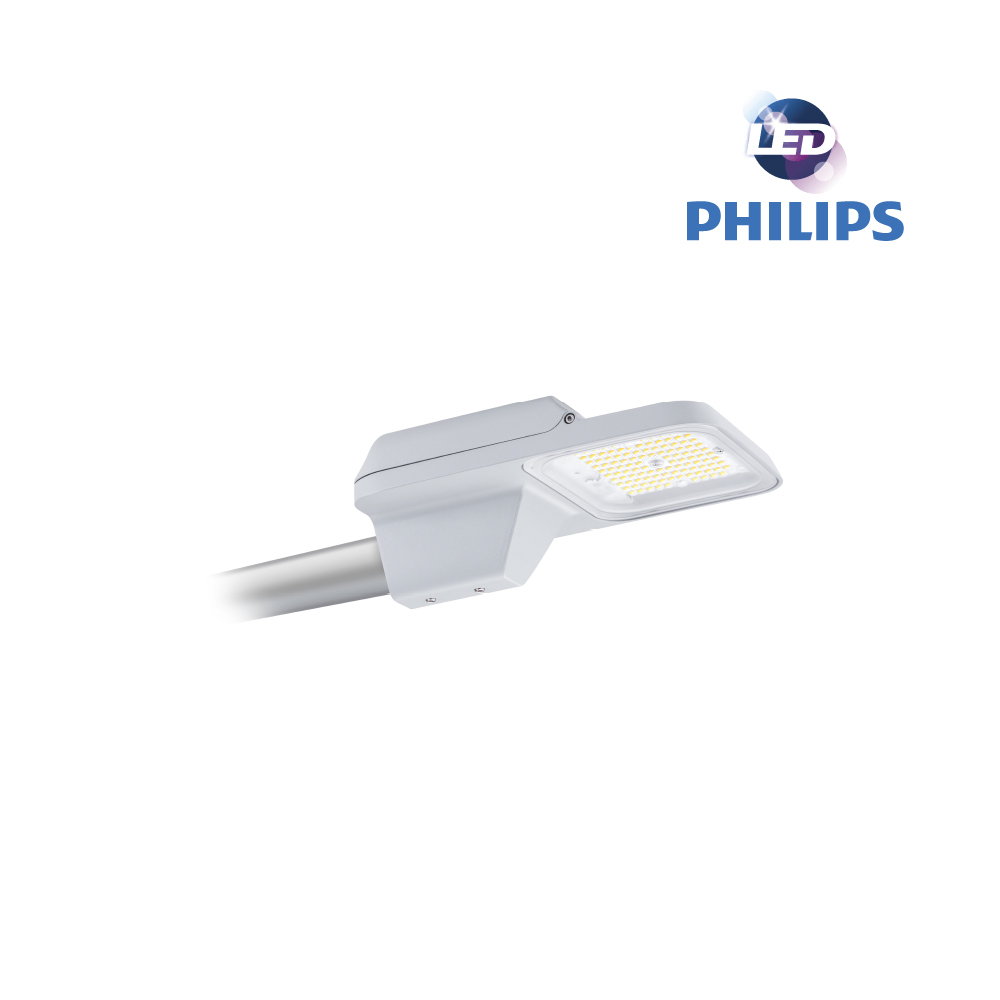

โคมไฟถนน Philips BRP491 LED142 CW 98W

General information

Driver included :

• Yes

Light Technical

Luminous Flux :

• 14,200 lumen

Correlated Color Temperature (Nom) :

• 5700 K

Luminous Efficacy (rated) (Nom) :

• 140 lm/W

Color rendering index (CRI) :

• >70

Lamp colour code :

• Cool white

Optical cover/lens type :

• Polycarbonate micro lens optic

Operating and Electrical

Input Voltage :

• 220 to 240 V

Line Frequency :

• 50 or 60 Hz

Input Frequency :

• 50 or 60 Hz

Power Consumption :

• 98 W

Power Factor (Fraction) :

• 0.95

Connection :

• Screw connection block 3-pole

Cable :

• –

Temperature

Ambient temperature range :

• -40 to +50 °C

Controls and Dimming

Dimmable :

• Yes

Control interface :

• Analog

Mechanical and Housing

Housing material :

• Aluminium pressure die cast

Optical cover/lens material :

• Polycarbonate

Housing Color :

• Aluminum and Gray

Overall length :

• 355 mm

Overall width :

• 230 mm

Overall height :

• 136 mm

Dimensions (Height x Width x Depth) :

• 136 x 230 x 355 mm

Approval and Application

Ingress protection code :

• IP66 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [ 5 J vandal-protected]

Protection class IEC :

• Safety class I

CE mark :

• CE mark

Initial Performance (IEC compliant)

Luminous flux tolerance :

• +/-10%

Power consumption tolerance :

• +/-10%

Product data

Full product code :

• 824110114272

Order product name :

• BRP491 LED142/CW 98W 220-240V DM

Order code :

• 824110114272

Numerator – Quantity Per Pack :

• 1

Numerator – Packs per outer box :

• 1

Material number (12NC) :

• 824110114272

Full product name :

• BRP491 LED142/CW 98W 220-240V DM
