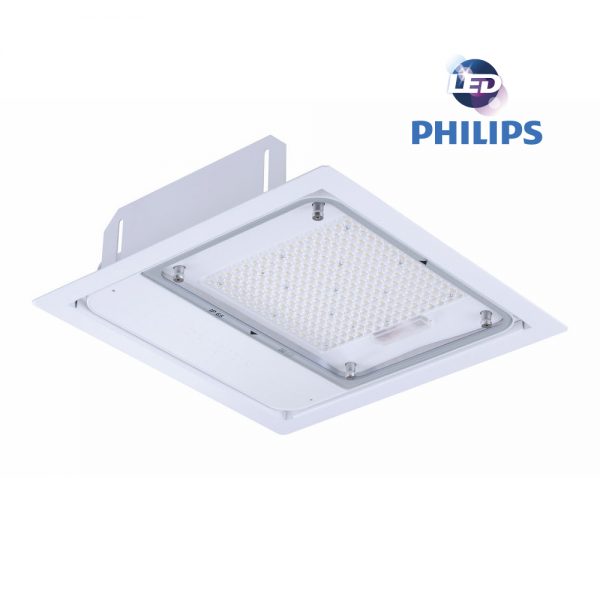

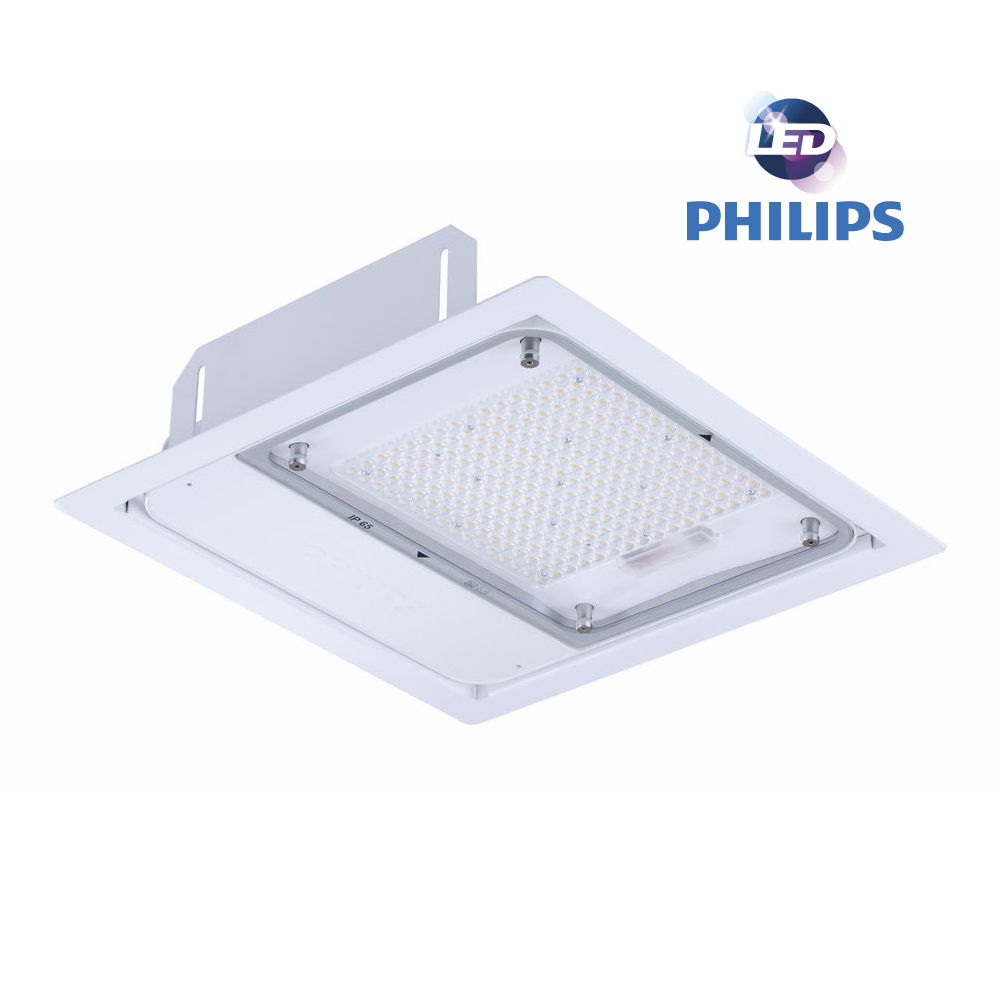

โคมไฟไฮเบย์ Philips BBP500 LED180 CW 140W

General information

Lamp colour code :

• 865 cool daylight

Light source replaceable :

• No

Number of gear units :

• 1

Driver/power unit/transformer :

• Power supply unit (On/Off)

Driver included :

• Yes

Optic type :

• Wide beam

Optical cover/lens type :

• Tempered glass

Luminaire light beam spread :

• 110°

Control interface :

• –

Connection :

• Flying leads/wires

Cable :

• Cable 0.3 m without plug

Protection class IEC :

• Safety class I

Glow-wire test :

• Temperature 650 °C, duration 5 s

Flammability mark :

• For mounting on normally flammable surfaces

CE mark :

• CE mark

ENEC mark :

• –

Warranty period :

• 3 years

Constant light output :

• No

Number of products on MCB (16 A type B) :

• 4

EU RoHS compliant :

• No

Light source engine type :

• LED

Operating and electrical

Input Voltage :

• 220 to 240 V

Input frequency :

• 50 or 60 Hz

Inrush current :

• 46 A

Inrush time :

• 440 ms

Power factor (min.) :

• 0.95

Controls and dimming

Dimmable :

• No

Mechanical and housing

Housing material :

• Aluminum die cast

Reflector material :

• –

Optic material :

• Polycarbonate

Optical cover/lens material :

• Tempered glass

Fixation material :

• –

Optical cover/lens finish :

• Clear

Overall length :

• 400 mm

Overall width :

• 400 mm

Color :

• White

Approval and application

Ingress protection code :

• IP65 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK07 [ 2 J reinforced]

Initial performance (IEC compliant)

Initial luminous flux (system flux) :

• 18000 lm

Luminous flux tolerance :

• +/-10%

Initial LED luminaire efficacy :

• 129 lm/W

Init. Corr. Color Temperature :

• 6500 K

Init. Color Rendering Index :

• >80

Initial chromaticity :

• (0.313.0.324)SDCM<5

Initial input power :

• 140 W

Power consumption tolerance :

• +/-10%

Over time performance (IEC compliant)

Median useful life L70B50 :

• 50000 h

Median useful life L80B50 :

• 40000 h

Median useful life L90B50 :

• 30000 h

Application conditions

Ambient temperature range :

• -40 to +45 °C

Maximum dimming level :

• Not applicable

Suitable for random switching :

• No

Product data

Full product code :

• 872016954663900

Order product name :

• BBP500 G2 LED180/CW PSU S-WB

Order code :

• 911401534151

Numerator – Quantity Per Pack :

• 1

Numerator – packs per outer box :

• 1

Material Nr. (12NC) :

• 911401534151
